Author: Nick Gammon
Date written: February 2022
Demonstration video here on Vimeo.
The documented WD65C02 instruction set, with all operand modes
Full expression evaluation of operands, with operator precedence, parentheses, bitwise operations and so on.
Relocation of the output to any memory address (ORG directive)
Support for debugging using breakpoints (BRK instruction)
Here is “hello world” in assembler:
jmp begin ; skip the message
hello asciiz "Hello, world!"
begin:
lda #<hello
ldx #>hello
jsr print
rts
Detailed notes about the assembler here.
CONST, VAR, FUNCTION and PROCEDURE declarations
Local declarations (functions and variables within functions, etc.)
Recursive function and procedure calls
Arithmetic: multiply, divide, add, subtract, modulus
Logical operations: and, or, shift left, shift right, exclusive or
INTEGER and CHAR data types. (Integer are 3 bytes and thus range from 8388607 to -8388608)
Arrays
Interface with any memory address by using the MEM and MEMC constructs (to peek and poke memory locations)
Built-in functions to write to the LCD display.
Built-in functions to do pinMode, digitalRead and digitalWrite, similar to the Arduino. These interface with any available ports on the VIA chip.
Here is “hello world” for the LCD display:
begin
lcdclear;
lcdwrite ("Hello, world!")
end.
And for the serial monitor:
begin
writeln ("Hello, world!")
end.
Detailed notes about the compiler here.
Available actions:
List/SAve line_number_range
Delete line_number_range
Insert/LOad after_line
Find line_number_range /target/flags
Replace line_number_range /target/replacement/flags
Help
INfo
Memory first_address last_address
Compile/Syntax/Assemble
RUn/DEBug/Trace/RESume
Poke/Jsr/JMp
RECover
(Actions may be abbreviated)
(Flags: 'I'gnore case, 'G'lobal, 'Q'uiet)
Both the Pascal compiler and assembler are quite fast. Any program that will fit into memory will compile in a few seconds. For example, using a 1 MHz clock:
RS232 interface (required)
To interface with the compiler, text editor and assembler you clearly need some way to “talk” to Ben’s 6502 board. The on-board code supports interfacing with a serial interface running at 4800 baud. To do this you will need to use an FTDI cable, available on eBay for around $US 10. The wiring for it is here.
An NMI interrupt push-button (suggested)
It helps to recover from runaway or rogue code by pressing a switch button connected to the NMI pin of the 65C02. This does a “warm restart” which basically starts the code again, however it retains your existing source code. The wiring for it is here.
An enhancement that stops you attempting to write to EEPROM (suggested)
The way Ben described the address decoding for the EEPROM, it is possible for both the CPU and the EEPROM to be attempting to write to the bus at the same time (eg. STA $8000). The suggested wiring uses a spare NAND gate on the existing board to prevent that. This would prevent possible damage to the CPU and/or the EEPROM if such code was attempted. The wiring for it is here.
An enhancement to give yourself access to more of the on-board RAM (suggested)
The way Ben did his address decoding for the RAM meant that only 16k of the chip’s 32k was available. You can make a simple change using a 74LS08 “AND” gate that extends the RAM address space to 0x6000 rather than 0x4000, thus giving you 24k of RAM (an extra 8k) for the cost of a one dollar chip and a few jumper cables. This change is required to compile the “Adventure” game because of its size. The wiring for it is here.
Put in a faster oscillator
To get a nice speed boost, simply replace the 1 MHz oscillator with 2 MHz or 4 MHz. You will get a corresponding increase in speed. Since the serial communications assume a 1 MHz oscillator, simply increase the baud rate that you use to communicate with the board to match. In other words, with a 2 MHz oscillator use 9600 baud, and with a 4 MHz oscillator use 19200 baud. I haven’t tried faster clock speeds yet.
You can disconnect, if you wish, the four low-order data bits from the HD44780U LCD screen to the VIA. (That is, VIA pins 10, 11, 12 and 13). This is because the LCD code has been rewritten to use 4-bit mode, thus freeing up those pins.
I rewrote the LCD code to use 4-bit mode on the HD44780U LCD display. This frees up 4 fairly valuable pins on the VIA (versatile interface adapter) chip for other uses, such as developing an SPI interface.
Pins PA0 and PA1 on the VIA are used for the serial interface, as well as CB2 to detect the start bit for incoming serial data.
That leaves 7 pins for your own use (PA2, PA3, PA4, PB0, PB1, PB2, PB3).
As an example of what can be done, there is a (roughly) 700-line “Adventure” program available here for compiling. That demonstrates a lot of the features of the compiler and is a fun game to try out. Note that running this requires a small hardware modification to Ben’s board to make more of the RAM available, as described here. This program was originally written in 1982 for the Apple II version of G-Pascal, and has been modified slightly to conform to the syntax of this compiler.
Other example programs are prime number generation, square roots calculation, and a guessing game.
Or, you can play with assembler coding and make LEDs blink. :)
Example code here.
The code is released under an extremely liberal license (MIT License), which basically means you can do anything at all you like with it, except claiming you wrote it yourself. ;)
Ben does a fabulous series of YouTube videos about wiring together this 6502 breadboard computer. The first in the series is here.
It really is extremely interesting and educational. I strongly recommend you watch the video series and consider supporting Ben’s Patreon.
You can buy a kit from Ben. Ben has put a lot of work into making these educational videos — I suggest you support him and his future endeavours by buying his kits from him.
There is no particular reason this code wouldn’t run on other 6502 set-ups. You would need to be aware of the hardware addresses of things like your RAM (which presumably starts at 0x0000 because you need access to the 6502 hardware stack at 0x0100) and your ROM (which presumably covers 0xF000 to 0xFFFF because of the need to have NMI/Reset/IRQ vectors).
You may need to modify the way the code interfaces with the hardware, depending on your personal setup.

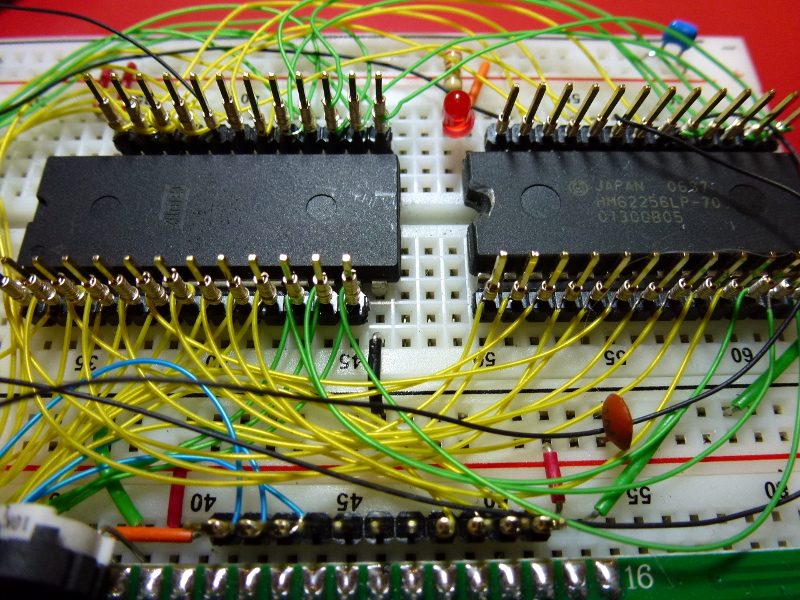

My board was made from a genuine kit from Ben Eater’s website, however I largely connected the pins using wire-wrapping rather than breadboard wires.
There were several reasons for this:
Wire wrapping is not much slower than putting in breadboard wires. You still have to cut the wires to length and strip them, so that part is much the same, except when the supplied breadboard wires happen to be exactly the right length. The only extra step is to insert the wire into the tool and twirl it around to bind it to the post.

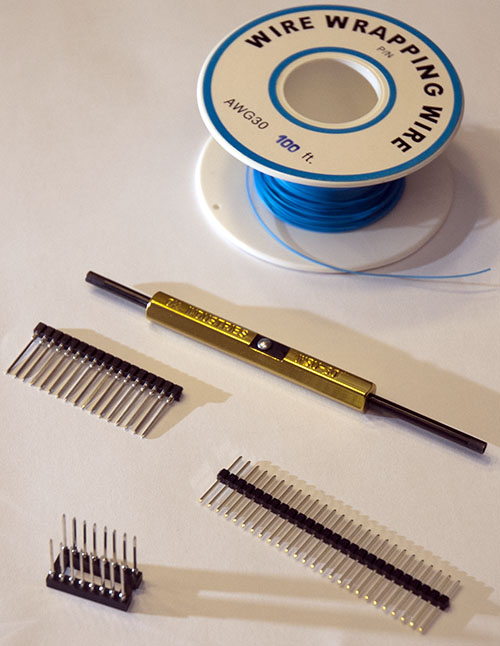

The extra things you need to do wire-wrapping are:
There are various tutorials around for how to wire-wrap including this one from Sparkfun.
A considerable amount of detail about the 6502 and suggested schematics are at Garth Wilson’s 6502 primer: Building your own 6502 computer. There is a schematic on his site which looks similar to the one Ben used. There is also a lot of background detail there and suggestions for alternatives.
