Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #30 on Sat 07 Apr 2007 03:14 AM (UTC)
Message
A bit more research indicates maybe this is the correct gap sequence:


// the 6 value iterations in the xterm color cube
static const unsigned char valuerange[] = { 0x00, 0x5F, 0x87, 0xAF, 0xD7, 0xFF };


This is different from my original sequence (DF becomes D7), but at least the gaps are more consistent now:


95 + 40 + 40 + 40 + 40 = 255

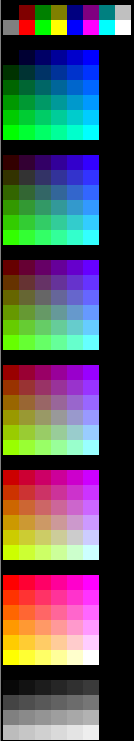

This gives the following codes:


16 (black)                R=  0 G=  0 B=  0 #000000 &h000000 0x000000
17                        R=  0 G=  0 B= 95 #00005F &h5F0000 0x5F0000
18                        R=  0 G=  0 B=135 #000087 &h870000 0x870000
19                        R=  0 G=  0 B=175 #0000AF &hAF0000 0xAF0000
20                        R=  0 G=  0 B=215 #0000D7 &hD70000 0xD70000
21 (blue)                 R=  0 G=  0 B=255 #0000FF &hFF0000 0xFF0000
22                        R=  0 G= 95 B=  0 #005F00 &h005F00 0x005F00
23                        R=  0 G= 95 B= 95 #005F5F &h5F5F00 0x5F5F00
24                        R=  0 G= 95 B=135 #005F87 &h875F00 0x875F00
25                        R=  0 G= 95 B=175 #005FAF &hAF5F00 0xAF5F00
26                        R=  0 G= 95 B=215 #005FD7 &hD75F00 0xD75F00
27                        R=  0 G= 95 B=255 #005FFF &hFF5F00 0xFF5F00
28                        R=  0 G=135 B=  0 #008700 &h008700 0x008700
29                        R=  0 G=135 B= 95 #00875F &h5F8700 0x5F8700
30                        R=  0 G=135 B=135 #008787 &h878700 0x878700
31                        R=  0 G=135 B=175 #0087AF &hAF8700 0xAF8700
32                        R=  0 G=135 B=215 #0087D7 &hD78700 0xD78700
33                        R=  0 G=135 B=255 #0087FF &hFF8700 0xFF8700
34                        R=  0 G=175 B=  0 #00AF00 &h00AF00 0x00AF00
35                        R=  0 G=175 B= 95 #00AF5F &h5FAF00 0x5FAF00
36                        R=  0 G=175 B=135 #00AF87 &h87AF00 0x87AF00
37                        R=  0 G=175 B=175 #00AFAF &hAFAF00 0xAFAF00
38                        R=  0 G=175 B=215 #00AFD7 &hD7AF00 0xD7AF00
39                        R=  0 G=175 B=255 #00AFFF &hFFAF00 0xFFAF00
40                        R=  0 G=215 B=  0 #00D700 &h00D700 0x00D700
41                        R=  0 G=215 B= 95 #00D75F &h5FD700 0x5FD700
42                        R=  0 G=215 B=135 #00D787 &h87D700 0x87D700
43                        R=  0 G=215 B=175 #00D7AF &hAFD700 0xAFD700
44                        R=  0 G=215 B=215 #00D7D7 &hD7D700 0xD7D700
45                        R=  0 G=215 B=255 #00D7FF &hFFD700 0xFFD700
46 (lime)                 R=  0 G=255 B=  0 #00FF00 &h00FF00 0x00FF00
47                        R=  0 G=255 B= 95 #00FF5F &h5FFF00 0x5FFF00
48                        R=  0 G=255 B=135 #00FF87 &h87FF00 0x87FF00
49                        R=  0 G=255 B=175 #00FFAF &hAFFF00 0xAFFF00
50                        R=  0 G=255 B=215 #00FFD7 &hD7FF00 0xD7FF00
51 (cyan, aqua)           R=  0 G=255 B=255 #00FFFF &hFFFF00 0xFFFF00
52                        R= 95 G=  0 B=  0 #5F0000 &h00005F 0x00005F
53                        R= 95 G=  0 B= 95 #5F005F &h5F005F 0x5F005F
54                        R= 95 G=  0 B=135 #5F0087 &h87005F 0x87005F
55                        R= 95 G=  0 B=175 #5F00AF &hAF005F 0xAF005F
56                        R= 95 G=  0 B=215 #5F00D7 &hD7005F 0xD7005F
57                        R= 95 G=  0 B=255 #5F00FF &hFF005F 0xFF005F
58                        R= 95 G= 95 B=  0 #5F5F00 &h005F5F 0x005F5F
59                        R= 95 G= 95 B= 95 #5F5F5F &h5F5F5F 0x5F5F5F
60                        R= 95 G= 95 B=135 #5F5F87 &h875F5F 0x875F5F
61                        R= 95 G= 95 B=175 #5F5FAF &hAF5F5F 0xAF5F5F
62                        R= 95 G= 95 B=215 #5F5FD7 &hD75F5F 0xD75F5F
63                        R= 95 G= 95 B=255 #5F5FFF &hFF5F5F 0xFF5F5F
64                        R= 95 G=135 B=  0 #5F8700 &h00875F 0x00875F
65                        R= 95 G=135 B= 95 #5F875F &h5F875F 0x5F875F
66                        R= 95 G=135 B=135 #5F8787 &h87875F 0x87875F
67                        R= 95 G=135 B=175 #5F87AF &hAF875F 0xAF875F
68                        R= 95 G=135 B=215 #5F87D7 &hD7875F 0xD7875F
69                        R= 95 G=135 B=255 #5F87FF &hFF875F 0xFF875F
70                        R= 95 G=175 B=  0 #5FAF00 &h00AF5F 0x00AF5F
71                        R= 95 G=175 B= 95 #5FAF5F &h5FAF5F 0x5FAF5F
72                        R= 95 G=175 B=135 #5FAF87 &h87AF5F 0x87AF5F
73                        R= 95 G=175 B=175 #5FAFAF &hAFAF5F 0xAFAF5F
74                        R= 95 G=175 B=215 #5FAFD7 &hD7AF5F 0xD7AF5F
75                        R= 95 G=175 B=255 #5FAFFF &hFFAF5F 0xFFAF5F
76                        R= 95 G=215 B=  0 #5FD700 &h00D75F 0x00D75F
77                        R= 95 G=215 B= 95 #5FD75F &h5FD75F 0x5FD75F
78                        R= 95 G=215 B=135 #5FD787 &h87D75F 0x87D75F
79                        R= 95 G=215 B=175 #5FD7AF &hAFD75F 0xAFD75F
80                        R= 95 G=215 B=215 #5FD7D7 &hD7D75F 0xD7D75F
81                        R= 95 G=215 B=255 #5FD7FF &hFFD75F 0xFFD75F
82                        R= 95 G=255 B=  0 #5FFF00 &h00FF5F 0x00FF5F
83                        R= 95 G=255 B= 95 #5FFF5F &h5FFF5F 0x5FFF5F
84                        R= 95 G=255 B=135 #5FFF87 &h87FF5F 0x87FF5F
85                        R= 95 G=255 B=175 #5FFFAF &hAFFF5F 0xAFFF5F
86                        R= 95 G=255 B=215 #5FFFD7 &hD7FF5F 0xD7FF5F
87                        R= 95 G=255 B=255 #5FFFFF &hFFFF5F 0xFFFF5F
88                        R=135 G=  0 B=  0 #870000 &h000087 0x000087
89                        R=135 G=  0 B= 95 #87005F &h5F0087 0x5F0087
90                        R=135 G=  0 B=135 #870087 &h870087 0x870087
91                        R=135 G=  0 B=175 #8700AF &hAF0087 0xAF0087
92                        R=135 G=  0 B=215 #8700D7 &hD70087 0xD70087
93                        R=135 G=  0 B=255 #8700FF &hFF0087 0xFF0087
94                        R=135 G= 95 B=  0 #875F00 &h005F87 0x005F87
95                        R=135 G= 95 B= 95 #875F5F &h5F5F87 0x5F5F87
96                        R=135 G= 95 B=135 #875F87 &h875F87 0x875F87
97                        R=135 G= 95 B=175 #875FAF &hAF5F87 0xAF5F87
98                        R=135 G= 95 B=215 #875FD7 &hD75F87 0xD75F87
99                        R=135 G= 95 B=255 #875FFF &hFF5F87 0xFF5F87
100                       R=135 G=135 B=  0 #878700 &h008787 0x008787
101                       R=135 G=135 B= 95 #87875F &h5F8787 0x5F8787
102                       R=135 G=135 B=135 #878787 &h878787 0x878787
103                       R=135 G=135 B=175 #8787AF &hAF8787 0xAF8787
104                       R=135 G=135 B=215 #8787D7 &hD78787 0xD78787
105                       R=135 G=135 B=255 #8787FF &hFF8787 0xFF8787
106                       R=135 G=175 B=  0 #87AF00 &h00AF87 0x00AF87
107                       R=135 G=175 B= 95 #87AF5F &h5FAF87 0x5FAF87
108                       R=135 G=175 B=135 #87AF87 &h87AF87 0x87AF87
109                       R=135 G=175 B=175 #87AFAF &hAFAF87 0xAFAF87
110                       R=135 G=175 B=215 #87AFD7 &hD7AF87 0xD7AF87
111                       R=135 G=175 B=255 #87AFFF &hFFAF87 0xFFAF87
112                       R=135 G=215 B=  0 #87D700 &h00D787 0x00D787
113                       R=135 G=215 B= 95 #87D75F &h5FD787 0x5FD787
114                       R=135 G=215 B=135 #87D787 &h87D787 0x87D787
115                       R=135 G=215 B=175 #87D7AF &hAFD787 0xAFD787
116                       R=135 G=215 B=215 #87D7D7 &hD7D787 0xD7D787
117                       R=135 G=215 B=255 #87D7FF &hFFD787 0xFFD787
118                       R=135 G=255 B=  0 #87FF00 &h00FF87 0x00FF87
119                       R=135 G=255 B= 95 #87FF5F &h5FFF87 0x5FFF87
120                       R=135 G=255 B=135 #87FF87 &h87FF87 0x87FF87
121                       R=135 G=255 B=175 #87FFAF &hAFFF87 0xAFFF87
122                       R=135 G=255 B=215 #87FFD7 &hD7FF87 0xD7FF87
123                       R=135 G=255 B=255 #87FFFF &hFFFF87 0xFFFF87
124                       R=175 G=  0 B=  0 #AF0000 &h0000AF 0x0000AF
125                       R=175 G=  0 B= 95 #AF005F &h5F00AF 0x5F00AF
126                       R=175 G=  0 B=135 #AF0087 &h8700AF 0x8700AF
127                       R=175 G=  0 B=175 #AF00AF &hAF00AF 0xAF00AF
128                       R=175 G=  0 B=215 #AF00D7 &hD700AF 0xD700AF
129                       R=175 G=  0 B=255 #AF00FF &hFF00AF 0xFF00AF
130                       R=175 G= 95 B=  0 #AF5F00 &h005FAF 0x005FAF
131                       R=175 G= 95 B= 95 #AF5F5F &h5F5FAF 0x5F5FAF
132                       R=175 G= 95 B=135 #AF5F87 &h875FAF 0x875FAF
133                       R=175 G= 95 B=175 #AF5FAF &hAF5FAF 0xAF5FAF
134                       R=175 G= 95 B=215 #AF5FD7 &hD75FAF 0xD75FAF
135                       R=175 G= 95 B=255 #AF5FFF &hFF5FAF 0xFF5FAF
136                       R=175 G=135 B=  0 #AF8700 &h0087AF 0x0087AF
137                       R=175 G=135 B= 95 #AF875F &h5F87AF 0x5F87AF
138                       R=175 G=135 B=135 #AF8787 &h8787AF 0x8787AF
139                       R=175 G=135 B=175 #AF87AF &hAF87AF 0xAF87AF
140                       R=175 G=135 B=215 #AF87D7 &hD787AF 0xD787AF
141                       R=175 G=135 B=255 #AF87FF &hFF87AF 0xFF87AF
142                       R=175 G=175 B=  0 #AFAF00 &h00AFAF 0x00AFAF
143                       R=175 G=175 B= 95 #AFAF5F &h5FAFAF 0x5FAFAF
144                       R=175 G=175 B=135 #AFAF87 &h87AFAF 0x87AFAF
145                       R=175 G=175 B=175 #AFAFAF &hAFAFAF 0xAFAFAF
146                       R=175 G=175 B=215 #AFAFD7 &hD7AFAF 0xD7AFAF
147                       R=175 G=175 B=255 #AFAFFF &hFFAFAF 0xFFAFAF
148                       R=175 G=215 B=  0 #AFD700 &h00D7AF 0x00D7AF
149                       R=175 G=215 B= 95 #AFD75F &h5FD7AF 0x5FD7AF
150                       R=175 G=215 B=135 #AFD787 &h87D7AF 0x87D7AF
151                       R=175 G=215 B=175 #AFD7AF &hAFD7AF 0xAFD7AF
152                       R=175 G=215 B=215 #AFD7D7 &hD7D7AF 0xD7D7AF
153                       R=175 G=215 B=255 #AFD7FF &hFFD7AF 0xFFD7AF
154                       R=175 G=255 B=  0 #AFFF00 &h00FFAF 0x00FFAF
155                       R=175 G=255 B= 95 #AFFF5F &h5FFFAF 0x5FFFAF
156                       R=175 G=255 B=135 #AFFF87 &h87FFAF 0x87FFAF
157                       R=175 G=255 B=175 #AFFFAF &hAFFFAF 0xAFFFAF
158                       R=175 G=255 B=215 #AFFFD7 &hD7FFAF 0xD7FFAF
159                       R=175 G=255 B=255 #AFFFFF &hFFFFAF 0xFFFFAF
160                       R=215 G=  0 B=  0 #D70000 &h0000D7 0x0000D7
161                       R=215 G=  0 B= 95 #D7005F &h5F00D7 0x5F00D7
162                       R=215 G=  0 B=135 #D70087 &h8700D7 0x8700D7
163                       R=215 G=  0 B=175 #D700AF &hAF00D7 0xAF00D7
164                       R=215 G=  0 B=215 #D700D7 &hD700D7 0xD700D7
165                       R=215 G=  0 B=255 #D700FF &hFF00D7 0xFF00D7
166                       R=215 G= 95 B=  0 #D75F00 &h005FD7 0x005FD7
167                       R=215 G= 95 B= 95 #D75F5F &h5F5FD7 0x5F5FD7
168                       R=215 G= 95 B=135 #D75F87 &h875FD7 0x875FD7
169                       R=215 G= 95 B=175 #D75FAF &hAF5FD7 0xAF5FD7
170                       R=215 G= 95 B=215 #D75FD7 &hD75FD7 0xD75FD7
171                       R=215 G= 95 B=255 #D75FFF &hFF5FD7 0xFF5FD7
172                       R=215 G=135 B=  0 #D78700 &h0087D7 0x0087D7
173                       R=215 G=135 B= 95 #D7875F &h5F87D7 0x5F87D7
174                       R=215 G=135 B=135 #D78787 &h8787D7 0x8787D7
175                       R=215 G=135 B=175 #D787AF &hAF87D7 0xAF87D7
176                       R=215 G=135 B=215 #D787D7 &hD787D7 0xD787D7
177                       R=215 G=135 B=255 #D787FF &hFF87D7 0xFF87D7
178                       R=215 G=175 B=  0 #D7AF00 &h00AFD7 0x00AFD7
179                       R=215 G=175 B= 95 #D7AF5F &h5FAFD7 0x5FAFD7
180                       R=215 G=175 B=135 #D7AF87 &h87AFD7 0x87AFD7
181                       R=215 G=175 B=175 #D7AFAF &hAFAFD7 0xAFAFD7
182                       R=215 G=175 B=215 #D7AFD7 &hD7AFD7 0xD7AFD7
183                       R=215 G=175 B=255 #D7AFFF &hFFAFD7 0xFFAFD7
184                       R=215 G=215 B=  0 #D7D700 &h00D7D7 0x00D7D7
185                       R=215 G=215 B= 95 #D7D75F &h5FD7D7 0x5FD7D7
186                       R=215 G=215 B=135 #D7D787 &h87D7D7 0x87D7D7
187                       R=215 G=215 B=175 #D7D7AF &hAFD7D7 0xAFD7D7
188                       R=215 G=215 B=215 #D7D7D7 &hD7D7D7 0xD7D7D7
189                       R=215 G=215 B=255 #D7D7FF &hFFD7D7 0xFFD7D7
190                       R=215 G=255 B=  0 #D7FF00 &h00FFD7 0x00FFD7
191                       R=215 G=255 B= 95 #D7FF5F &h5FFFD7 0x5FFFD7
192                       R=215 G=255 B=135 #D7FF87 &h87FFD7 0x87FFD7
193                       R=215 G=255 B=175 #D7FFAF &hAFFFD7 0xAFFFD7
194                       R=215 G=255 B=215 #D7FFD7 &hD7FFD7 0xD7FFD7
195                       R=215 G=255 B=255 #D7FFFF &hFFFFD7 0xFFFFD7
196 (red)                 R=255 G=  0 B=  0 #FF0000 &h0000FF 0x0000FF
197                       R=255 G=  0 B= 95 #FF005F &h5F00FF 0x5F00FF
198                       R=255 G=  0 B=135 #FF0087 &h8700FF 0x8700FF
199                       R=255 G=  0 B=175 #FF00AF &hAF00FF 0xAF00FF
200                       R=255 G=  0 B=215 #FF00D7 &hD700FF 0xD700FF
201 (magenta, fuchsia)    R=255 G=  0 B=255 #FF00FF &hFF00FF 0xFF00FF
202                       R=255 G= 95 B=  0 #FF5F00 &h005FFF 0x005FFF
203                       R=255 G= 95 B= 95 #FF5F5F &h5F5FFF 0x5F5FFF
204                       R=255 G= 95 B=135 #FF5F87 &h875FFF 0x875FFF
205                       R=255 G= 95 B=175 #FF5FAF &hAF5FFF 0xAF5FFF
206                       R=255 G= 95 B=215 #FF5FD7 &hD75FFF 0xD75FFF
207                       R=255 G= 95 B=255 #FF5FFF &hFF5FFF 0xFF5FFF
208                       R=255 G=135 B=  0 #FF8700 &h0087FF 0x0087FF
209                       R=255 G=135 B= 95 #FF875F &h5F87FF 0x5F87FF
210                       R=255 G=135 B=135 #FF8787 &h8787FF 0x8787FF
211                       R=255 G=135 B=175 #FF87AF &hAF87FF 0xAF87FF
212                       R=255 G=135 B=215 #FF87D7 &hD787FF 0xD787FF
213                       R=255 G=135 B=255 #FF87FF &hFF87FF 0xFF87FF
214                       R=255 G=175 B=  0 #FFAF00 &h00AFFF 0x00AFFF
215                       R=255 G=175 B= 95 #FFAF5F &h5FAFFF 0x5FAFFF
216                       R=255 G=175 B=135 #FFAF87 &h87AFFF 0x87AFFF
217                       R=255 G=175 B=175 #FFAFAF &hAFAFFF 0xAFAFFF
218                       R=255 G=175 B=215 #FFAFD7 &hD7AFFF 0xD7AFFF
219                       R=255 G=175 B=255 #FFAFFF &hFFAFFF 0xFFAFFF
220 (gold)                R=255 G=215 B=  0 #FFD700 &h00D7FF 0x00D7FF
221                       R=255 G=215 B= 95 #FFD75F &h5FD7FF 0x5FD7FF
222                       R=255 G=215 B=135 #FFD787 &h87D7FF 0x87D7FF
223                       R=255 G=215 B=175 #FFD7AF &hAFD7FF 0xAFD7FF
224                       R=255 G=215 B=215 #FFD7D7 &hD7D7FF 0xD7D7FF
225                       R=255 G=215 B=255 #FFD7FF &hFFD7FF 0xFFD7FF
226 (yellow)              R=255 G=255 B=  0 #FFFF00 &h00FFFF 0x00FFFF
227                       R=255 G=255 B= 95 #FFFF5F &h5FFFFF 0x5FFFFF
228                       R=255 G=255 B=135 #FFFF87 &h87FFFF 0x87FFFF
229                       R=255 G=255 B=175 #FFFFAF &hAFFFFF 0xAFFFFF
230                       R=255 G=255 B=215 #FFFFD7 &hD7FFFF 0xD7FFFF
231 (white)               R=255 G=255 B=255 #FFFFFF &hFFFFFF 0xFFFFFF


- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #31 on Sat 07 Apr 2007 03:26 AM (UTC)
Message
Quote:

(quoting myself)

Another site I came across seems to suggest that the colours *should* be evenly spaced in the colour cube, by an amount of 42.5 (ie. 256 / 6) rather than the spacing given on the page above.


Of course, this is nonsense because it should really be 255/5 (51) rather than 42.5. That way the range is 0x00 to 0xFF in even increments.

That is, this algorithm:


  for (red = 0; red < 6; red++)
      for (green = 0; green < 6; green++)
        for (blue = 0; blue < 6; blue++)
           xterm_256_colours [16 + (red * 36) + (blue * 6) + green] =
              RGB (red * 51, blue * 51, green * 51);


That gives this result:


16 (black)                R=  0 G=  0 B=  0 #000000 &h000000 0x000000
17                        R=  0 G=  0 B= 51 #000033 &h330000 0x330000
18                        R=  0 G=  0 B=102 #000066 &h660000 0x660000
19                        R=  0 G=  0 B=153 #000099 &h990000 0x990000
20                        R=  0 G=  0 B=204 #0000CC &hCC0000 0xCC0000
21 (blue)                 R=  0 G=  0 B=255 #0000FF &hFF0000 0xFF0000
22                        R=  0 G= 51 B=  0 #003300 &h003300 0x003300
23                        R=  0 G= 51 B= 51 #003333 &h333300 0x333300
24                        R=  0 G= 51 B=102 #003366 &h663300 0x663300
25                        R=  0 G= 51 B=153 #003399 &h993300 0x993300
26                        R=  0 G= 51 B=204 #0033CC &hCC3300 0xCC3300
27                        R=  0 G= 51 B=255 #0033FF &hFF3300 0xFF3300
28                        R=  0 G=102 B=  0 #006600 &h006600 0x006600
29                        R=  0 G=102 B= 51 #006633 &h336600 0x336600
30                        R=  0 G=102 B=102 #006666 &h666600 0x666600
31                        R=  0 G=102 B=153 #006699 &h996600 0x996600
32                        R=  0 G=102 B=204 #0066CC &hCC6600 0xCC6600
33                        R=  0 G=102 B=255 #0066FF &hFF6600 0xFF6600
34                        R=  0 G=153 B=  0 #009900 &h009900 0x009900
35                        R=  0 G=153 B= 51 #009933 &h339900 0x339900
36                        R=  0 G=153 B=102 #009966 &h669900 0x669900
37                        R=  0 G=153 B=153 #009999 &h999900 0x999900
38                        R=  0 G=153 B=204 #0099CC &hCC9900 0xCC9900
39                        R=  0 G=153 B=255 #0099FF &hFF9900 0xFF9900
40                        R=  0 G=204 B=  0 #00CC00 &h00CC00 0x00CC00
41                        R=  0 G=204 B= 51 #00CC33 &h33CC00 0x33CC00
42                        R=  0 G=204 B=102 #00CC66 &h66CC00 0x66CC00
43                        R=  0 G=204 B=153 #00CC99 &h99CC00 0x99CC00
44                        R=  0 G=204 B=204 #00CCCC &hCCCC00 0xCCCC00
45                        R=  0 G=204 B=255 #00CCFF &hFFCC00 0xFFCC00
46 (lime)                 R=  0 G=255 B=  0 #00FF00 &h00FF00 0x00FF00
47                        R=  0 G=255 B= 51 #00FF33 &h33FF00 0x33FF00
48                        R=  0 G=255 B=102 #00FF66 &h66FF00 0x66FF00
49                        R=  0 G=255 B=153 #00FF99 &h99FF00 0x99FF00
50                        R=  0 G=255 B=204 #00FFCC &hCCFF00 0xCCFF00
51 (cyan, aqua)           R=  0 G=255 B=255 #00FFFF &hFFFF00 0xFFFF00
52                        R= 51 G=  0 B=  0 #330000 &h000033 0x000033
53                        R= 51 G=  0 B= 51 #330033 &h330033 0x330033
54                        R= 51 G=  0 B=102 #330066 &h660033 0x660033
55                        R= 51 G=  0 B=153 #330099 &h990033 0x990033
56                        R= 51 G=  0 B=204 #3300CC &hCC0033 0xCC0033
57                        R= 51 G=  0 B=255 #3300FF &hFF0033 0xFF0033
58                        R= 51 G= 51 B=  0 #333300 &h003333 0x003333
59                        R= 51 G= 51 B= 51 #333333 &h333333 0x333333
60                        R= 51 G= 51 B=102 #333366 &h663333 0x663333
61                        R= 51 G= 51 B=153 #333399 &h993333 0x993333
62                        R= 51 G= 51 B=204 #3333CC &hCC3333 0xCC3333
63                        R= 51 G= 51 B=255 #3333FF &hFF3333 0xFF3333
64                        R= 51 G=102 B=  0 #336600 &h006633 0x006633
65                        R= 51 G=102 B= 51 #336633 &h336633 0x336633
66                        R= 51 G=102 B=102 #336666 &h666633 0x666633
67                        R= 51 G=102 B=153 #336699 &h996633 0x996633
68                        R= 51 G=102 B=204 #3366CC &hCC6633 0xCC6633
69                        R= 51 G=102 B=255 #3366FF &hFF6633 0xFF6633
70                        R= 51 G=153 B=  0 #339900 &h009933 0x009933
71                        R= 51 G=153 B= 51 #339933 &h339933 0x339933
72                        R= 51 G=153 B=102 #339966 &h669933 0x669933
73                        R= 51 G=153 B=153 #339999 &h999933 0x999933
74                        R= 51 G=153 B=204 #3399CC &hCC9933 0xCC9933
75                        R= 51 G=153 B=255 #3399FF &hFF9933 0xFF9933
76                        R= 51 G=204 B=  0 #33CC00 &h00CC33 0x00CC33
77                        R= 51 G=204 B= 51 #33CC33 &h33CC33 0x33CC33
78                        R= 51 G=204 B=102 #33CC66 &h66CC33 0x66CC33
79                        R= 51 G=204 B=153 #33CC99 &h99CC33 0x99CC33
80                        R= 51 G=204 B=204 #33CCCC &hCCCC33 0xCCCC33
81                        R= 51 G=204 B=255 #33CCFF &hFFCC33 0xFFCC33
82                        R= 51 G=255 B=  0 #33FF00 &h00FF33 0x00FF33
83                        R= 51 G=255 B= 51 #33FF33 &h33FF33 0x33FF33
84                        R= 51 G=255 B=102 #33FF66 &h66FF33 0x66FF33
85                        R= 51 G=255 B=153 #33FF99 &h99FF33 0x99FF33
86                        R= 51 G=255 B=204 #33FFCC &hCCFF33 0xCCFF33
87                        R= 51 G=255 B=255 #33FFFF &hFFFF33 0xFFFF33
88                        R=102 G=  0 B=  0 #660000 &h000066 0x000066
89                        R=102 G=  0 B= 51 #660033 &h330066 0x330066
90                        R=102 G=  0 B=102 #660066 &h660066 0x660066
91                        R=102 G=  0 B=153 #660099 &h990066 0x990066
92                        R=102 G=  0 B=204 #6600CC &hCC0066 0xCC0066
93                        R=102 G=  0 B=255 #6600FF &hFF0066 0xFF0066
94                        R=102 G= 51 B=  0 #663300 &h003366 0x003366
95                        R=102 G= 51 B= 51 #663333 &h333366 0x333366
96                        R=102 G= 51 B=102 #663366 &h663366 0x663366
97                        R=102 G= 51 B=153 #663399 &h993366 0x993366
98                        R=102 G= 51 B=204 #6633CC &hCC3366 0xCC3366
99                        R=102 G= 51 B=255 #6633FF &hFF3366 0xFF3366
100                       R=102 G=102 B=  0 #666600 &h006666 0x006666
101                       R=102 G=102 B= 51 #666633 &h336666 0x336666
102                       R=102 G=102 B=102 #666666 &h666666 0x666666
103                       R=102 G=102 B=153 #666699 &h996666 0x996666
104                       R=102 G=102 B=204 #6666CC &hCC6666 0xCC6666
105                       R=102 G=102 B=255 #6666FF &hFF6666 0xFF6666
106                       R=102 G=153 B=  0 #669900 &h009966 0x009966
107                       R=102 G=153 B= 51 #669933 &h339966 0x339966
108                       R=102 G=153 B=102 #669966 &h669966 0x669966
109                       R=102 G=153 B=153 #669999 &h999966 0x999966
110                       R=102 G=153 B=204 #6699CC &hCC9966 0xCC9966
111                       R=102 G=153 B=255 #6699FF &hFF9966 0xFF9966
112                       R=102 G=204 B=  0 #66CC00 &h00CC66 0x00CC66
113                       R=102 G=204 B= 51 #66CC33 &h33CC66 0x33CC66
114                       R=102 G=204 B=102 #66CC66 &h66CC66 0x66CC66
115                       R=102 G=204 B=153 #66CC99 &h99CC66 0x99CC66
116                       R=102 G=204 B=204 #66CCCC &hCCCC66 0xCCCC66
117                       R=102 G=204 B=255 #66CCFF &hFFCC66 0xFFCC66
118                       R=102 G=255 B=  0 #66FF00 &h00FF66 0x00FF66
119                       R=102 G=255 B= 51 #66FF33 &h33FF66 0x33FF66
120                       R=102 G=255 B=102 #66FF66 &h66FF66 0x66FF66
121                       R=102 G=255 B=153 #66FF99 &h99FF66 0x99FF66
122                       R=102 G=255 B=204 #66FFCC &hCCFF66 0xCCFF66
123                       R=102 G=255 B=255 #66FFFF &hFFFF66 0xFFFF66
124                       R=153 G=  0 B=  0 #990000 &h000099 0x000099
125                       R=153 G=  0 B= 51 #990033 &h330099 0x330099
126                       R=153 G=  0 B=102 #990066 &h660099 0x660099
127                       R=153 G=  0 B=153 #990099 &h990099 0x990099
128                       R=153 G=  0 B=204 #9900CC &hCC0099 0xCC0099
129                       R=153 G=  0 B=255 #9900FF &hFF0099 0xFF0099
130                       R=153 G= 51 B=  0 #993300 &h003399 0x003399
131                       R=153 G= 51 B= 51 #993333 &h333399 0x333399
132                       R=153 G= 51 B=102 #993366 &h663399 0x663399
133                       R=153 G= 51 B=153 #993399 &h993399 0x993399
134                       R=153 G= 51 B=204 #9933CC &hCC3399 0xCC3399
135                       R=153 G= 51 B=255 #9933FF &hFF3399 0xFF3399
136                       R=153 G=102 B=  0 #996600 &h006699 0x006699
137                       R=153 G=102 B= 51 #996633 &h336699 0x336699
138                       R=153 G=102 B=102 #996666 &h666699 0x666699
139                       R=153 G=102 B=153 #996699 &h996699 0x996699
140                       R=153 G=102 B=204 #9966CC &hCC6699 0xCC6699
141                       R=153 G=102 B=255 #9966FF &hFF6699 0xFF6699
142                       R=153 G=153 B=  0 #999900 &h009999 0x009999
143                       R=153 G=153 B= 51 #999933 &h339999 0x339999
144                       R=153 G=153 B=102 #999966 &h669999 0x669999
145                       R=153 G=153 B=153 #999999 &h999999 0x999999
146                       R=153 G=153 B=204 #9999CC &hCC9999 0xCC9999
147                       R=153 G=153 B=255 #9999FF &hFF9999 0xFF9999
148                       R=153 G=204 B=  0 #99CC00 &h00CC99 0x00CC99
149                       R=153 G=204 B= 51 #99CC33 &h33CC99 0x33CC99
150                       R=153 G=204 B=102 #99CC66 &h66CC99 0x66CC99
151                       R=153 G=204 B=153 #99CC99 &h99CC99 0x99CC99
152                       R=153 G=204 B=204 #99CCCC &hCCCC99 0xCCCC99
153                       R=153 G=204 B=255 #99CCFF &hFFCC99 0xFFCC99
154                       R=153 G=255 B=  0 #99FF00 &h00FF99 0x00FF99
155                       R=153 G=255 B= 51 #99FF33 &h33FF99 0x33FF99
156                       R=153 G=255 B=102 #99FF66 &h66FF99 0x66FF99
157                       R=153 G=255 B=153 #99FF99 &h99FF99 0x99FF99
158                       R=153 G=255 B=204 #99FFCC &hCCFF99 0xCCFF99
159                       R=153 G=255 B=255 #99FFFF &hFFFF99 0xFFFF99
160                       R=204 G=  0 B=  0 #CC0000 &h0000CC 0x0000CC
161                       R=204 G=  0 B= 51 #CC0033 &h3300CC 0x3300CC
162                       R=204 G=  0 B=102 #CC0066 &h6600CC 0x6600CC
163                       R=204 G=  0 B=153 #CC0099 &h9900CC 0x9900CC
164                       R=204 G=  0 B=204 #CC00CC &hCC00CC 0xCC00CC
165                       R=204 G=  0 B=255 #CC00FF &hFF00CC 0xFF00CC
166                       R=204 G= 51 B=  0 #CC3300 &h0033CC 0x0033CC
167                       R=204 G= 51 B= 51 #CC3333 &h3333CC 0x3333CC
168                       R=204 G= 51 B=102 #CC3366 &h6633CC 0x6633CC
169                       R=204 G= 51 B=153 #CC3399 &h9933CC 0x9933CC
170                       R=204 G= 51 B=204 #CC33CC &hCC33CC 0xCC33CC
171                       R=204 G= 51 B=255 #CC33FF &hFF33CC 0xFF33CC
172                       R=204 G=102 B=  0 #CC6600 &h0066CC 0x0066CC
173                       R=204 G=102 B= 51 #CC6633 &h3366CC 0x3366CC
174                       R=204 G=102 B=102 #CC6666 &h6666CC 0x6666CC
175                       R=204 G=102 B=153 #CC6699 &h9966CC 0x9966CC
176                       R=204 G=102 B=204 #CC66CC &hCC66CC 0xCC66CC
177                       R=204 G=102 B=255 #CC66FF &hFF66CC 0xFF66CC
178                       R=204 G=153 B=  0 #CC9900 &h0099CC 0x0099CC
179                       R=204 G=153 B= 51 #CC9933 &h3399CC 0x3399CC
180                       R=204 G=153 B=102 #CC9966 &h6699CC 0x6699CC
181                       R=204 G=153 B=153 #CC9999 &h9999CC 0x9999CC
182                       R=204 G=153 B=204 #CC99CC &hCC99CC 0xCC99CC
183                       R=204 G=153 B=255 #CC99FF &hFF99CC 0xFF99CC
184                       R=204 G=204 B=  0 #CCCC00 &h00CCCC 0x00CCCC
185                       R=204 G=204 B= 51 #CCCC33 &h33CCCC 0x33CCCC
186                       R=204 G=204 B=102 #CCCC66 &h66CCCC 0x66CCCC
187                       R=204 G=204 B=153 #CCCC99 &h99CCCC 0x99CCCC
188                       R=204 G=204 B=204 #CCCCCC &hCCCCCC 0xCCCCCC
189                       R=204 G=204 B=255 #CCCCFF &hFFCCCC 0xFFCCCC
190                       R=204 G=255 B=  0 #CCFF00 &h00FFCC 0x00FFCC
191                       R=204 G=255 B= 51 #CCFF33 &h33FFCC 0x33FFCC
192                       R=204 G=255 B=102 #CCFF66 &h66FFCC 0x66FFCC
193                       R=204 G=255 B=153 #CCFF99 &h99FFCC 0x99FFCC
194                       R=204 G=255 B=204 #CCFFCC &hCCFFCC 0xCCFFCC
195                       R=204 G=255 B=255 #CCFFFF &hFFFFCC 0xFFFFCC
196 (red)                 R=255 G=  0 B=  0 #FF0000 &h0000FF 0x0000FF
197                       R=255 G=  0 B= 51 #FF0033 &h3300FF 0x3300FF
198                       R=255 G=  0 B=102 #FF0066 &h6600FF 0x6600FF
199                       R=255 G=  0 B=153 #FF0099 &h9900FF 0x9900FF
200                       R=255 G=  0 B=204 #FF00CC &hCC00FF 0xCC00FF
201 (magenta, fuchsia)    R=255 G=  0 B=255 #FF00FF &hFF00FF 0xFF00FF
202                       R=255 G= 51 B=  0 #FF3300 &h0033FF 0x0033FF
203                       R=255 G= 51 B= 51 #FF3333 &h3333FF 0x3333FF
204                       R=255 G= 51 B=102 #FF3366 &h6633FF 0x6633FF
205                       R=255 G= 51 B=153 #FF3399 &h9933FF 0x9933FF
206                       R=255 G= 51 B=204 #FF33CC &hCC33FF 0xCC33FF
207                       R=255 G= 51 B=255 #FF33FF &hFF33FF 0xFF33FF
208                       R=255 G=102 B=  0 #FF6600 &h0066FF 0x0066FF
209                       R=255 G=102 B= 51 #FF6633 &h3366FF 0x3366FF
210                       R=255 G=102 B=102 #FF6666 &h6666FF 0x6666FF
211                       R=255 G=102 B=153 #FF6699 &h9966FF 0x9966FF
212                       R=255 G=102 B=204 #FF66CC &hCC66FF 0xCC66FF
213                       R=255 G=102 B=255 #FF66FF &hFF66FF 0xFF66FF
214                       R=255 G=153 B=  0 #FF9900 &h0099FF 0x0099FF
215                       R=255 G=153 B= 51 #FF9933 &h3399FF 0x3399FF
216                       R=255 G=153 B=102 #FF9966 &h6699FF 0x6699FF
217                       R=255 G=153 B=153 #FF9999 &h9999FF 0x9999FF
218                       R=255 G=153 B=204 #FF99CC &hCC99FF 0xCC99FF
219                       R=255 G=153 B=255 #FF99FF &hFF99FF 0xFF99FF
220                       R=255 G=204 B=  0 #FFCC00 &h00CCFF 0x00CCFF
221                       R=255 G=204 B= 51 #FFCC33 &h33CCFF 0x33CCFF
222                       R=255 G=204 B=102 #FFCC66 &h66CCFF 0x66CCFF
223                       R=255 G=204 B=153 #FFCC99 &h99CCFF 0x99CCFF
224                       R=255 G=204 B=204 #FFCCCC &hCCCCFF 0xCCCCFF
225                       R=255 G=204 B=255 #FFCCFF &hFFCCFF 0xFFCCFF
226 (yellow)              R=255 G=255 B=  0 #FFFF00 &h00FFFF 0x00FFFF
227                       R=255 G=255 B= 51 #FFFF33 &h33FFFF 0x33FFFF
228                       R=255 G=255 B=102 #FFFF66 &h66FFFF 0x66FFFF
229                       R=255 G=255 B=153 #FFFF99 &h99FFFF 0x99FFFF
230                       R=255 G=255 B=204 #FFFFCC &hCCFFFF 0xCCFFFF
231 (white)               R=255 G=255 B=255 #FFFFFF &hFFFFFF 0xFFFFFF


That looks nice and even. Can someone rescue me from this indecision?

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #32 on Sat 07 Apr 2007 03:32 AM (UTC)
Message
Various pages (see below) seem to support the notion of a colour cube that has even increments of 51 (hex 0x33) for each element in the cube.

References:

http://world.std.com/~wij/color/
http://www.webreference.com/dev/graphics/palette.html
http://www.help4web.net/webmaster/Color/ColorTables.html

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #33 on Sat 07 Apr 2007 06:11 AM (UTC)

Amended on Sat 07 Apr 2007 06:17 AM (UTC) by Nick Gammon

Message

These are the colour swatches generated with the current code (with 51 spacing as described above):

And, a smaller version without the reference numbers, which shows the colour transitions better:


- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #34 on Sat 07 Apr 2007 06:23 AM (UTC)
Message
Quote:

... you would need a second "xTerm" color dialog off the one for changing ansi settings, which would bring up the palette you can edit for them all ...


I don't really see the point in editing all 256 colours. There are so many on offer that the transitions are really quite subtle (see colour swatches above). If you really want to remap them all, use the MapColour script function.

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #35 on Sat 07 Apr 2007 06:38 AM (UTC)
Message
Quote:

The most common way to handle bad data, in everything I have ever used that had ANSI support, is to just throw out any codes that are invalid.


Well, does this mean:


  • Show the entire (bad) sequence as regular text, making the assumption that it is really intended to be seen.

  • Note the sequence is bad, but still hide it (ie. everything from ESC ... m), as it is clearly a control sequence, and not intended to be seen.

  • Display as much as you can (eg. my earlier example of multiple codes, some of which are good and some are bad) - in other words, skipping (and not displaying) any bad codes in the middle.

  • Process as much as you can, up to the bad code, and then ignore the rest.

  • Process as much as you can, up to the bad code, and then display the rest.


I'm a bit opposed to regarding something like ESC[48;5;101m as "bad" just because you can't process it. To display that on the screen, when it is "obviously" a control sequence, is just going to make the screen look ugly.

So, for example, if I accept ESC[48;5;101m but one day get ESC[48;6;101m I am inclined to quietly drop it (not display it) on the grounds that it some new code I don't know about, but almost certainly not something intended for the player to see.

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Shadowfyr   USA  (1,791 posts)  Bio
Date Reply #36 on Sat 07 Apr 2007 08:55 PM (UTC)

Amended on Sat 07 Apr 2007 09:43 PM (UTC) by Nick Gammon

Message
Ack.. Too many things to reply to. Here we go... lol

Quote:
"... and the normal ANSI part at defaults (something Mushclient already violates. lol)"

In what way?


Mushclient violates the rule of not changing the base 16 ANSI colors because we "can" already edit them. ".pal" files generally have the first 16 and the last 8? as default settings, this was a convention from the old days where the applications had to use the same color palette as the OS, so if you changed the first 16 or the grey scale either a) Your the OS would replace the images first 16 and last 8 with its standards, messing up the picture, or in more unusual cases, the applications colors would get changed to match the image (which in some cases could be very bad). So, Mushclient is violating the rules by allowing you to change those colors.

This is however irrelevant, unless someone expects those colors to be defaults and your text gets messed up somehow because of it. But if that is the case, there is nothing to prevent you from changing back to the normal set.

Quote:
I am inclined to agree with Shaun here. It is all very well wanting 500 colours in the picker, but it then gets unwieldy.

It is very easy to choose a colour like "powderblue" and then adjust the RGB sliders to modify the colour slightly, or click "other colour" to open the standard Windows colour picker, and then move the luminance slider, if you want to change the brightness of it.


Umm. Thinking more in terms of the script. If you want "powderblue4", you can't tell it, "Use powderblue, but make it X% darker." You would have to return the actual RGB color for it, break that into its components, calculate the darker/lighter color, glue the conponents back together, then send that result to through the colornote command. One way to make it less unwieldy in the picker would be to just add a check box that would sort through the colors and only show the "main" set. I.e., anything that showed up as "powderblue(n)" would be tossed, giving the original list. And one of the most frustrating problems I had when looking for a color value was trying to remember what I used some place else. Sure, you can look through your code. Sure, you can look through the main world to see what you set an alternate color to, sure, you can "find" it, but it would be a lot easier to find if it either already had, or you could give it a name.

I remember, for example, that the "Brown" definition in POVRay never looked right, it was more red than it should have been. Maybe someone *wants* to use that color so would call it "MyBrown", just as about 90% of us added a "MyBrown" or "TrueBrown" definition to the file to fix it. (The original ran on the Commodore Amiga, and apparently something odd about the hardware meant that what we see as a correct brown color looked too green, so they had to originally make it more red to compensate.)

Quote:
Vim is a text editor which is Vi IMproved. The .vim files are colour schemes for the editor. The screenshot just above all the .vim files is a screenshot of someone using vim to edit some code.


Thanks. I did look at the files and did mention that I suspected this was the case. The page it was on wasn't, like most that assume you know what the files do already, too specific about that.

Quote:
* Show the entire (bad) sequence as regular text, making the assumption that it is really intended to be seen.

* Note the sequence is bad, but still hide it (ie. everything from ESC ... m), as it is clearly a control sequence, and not intended to be seen.

* Display as much as you can (eg. my earlier example of multiple codes, some of which are good and some are bad) - in other words, skipping (and not displaying) any bad codes in the middle.

* Process as much as you can, up to the bad code, and then ignore the rest.

* Process as much as you can, up to the bad code, and then display the rest.


In my experience, going clear back to BBSes, its more or less something between all 4. If something went screwy with a sequence like "esc[32;1;194mesc[45;0m" and you ended up with "[32;1mesc[45;qm" The result would be: "[32;1mm", since the second set would be seen, but do to the incorrect termination, processing ends the moment it hits the bad data, taking the offending invalid character with it. I think it ignores numbers though, so you could do something like esc[32;5;4;99;5;6m and it would just throw out the invalid values, but if a character landed in there some place, instead of a number, it would immediately terminate, usually only doing what that final character specified, so "m" sets a color, while "s" would "only" do what that character designates. The only source I have is, I think, is in ML for DOS3.3 or something and there is no telling if MS followed spec either. lol
Top

Posted by Shadowfyr   USA  (1,791 posts)  Bio
Date Reply #37 on Sat 07 Apr 2007 09:08 PM (UTC)
Message
Umm. Note, I think your example of "ESC[48;6;101m" will still set the color, but it would ignore the "blink: rapid" command in the middle. XTerms color implimenation actually only works because most implimentations allow "ESC[n[;k]m", but ignore cases of "ESC[n[;k][;k]...m" There is nothing in the spec specifically preventing that, but I don't think ANSI.SYS allowed it and I don't know of any other that did either. The page on wikipedia for it

http://en.wikipedia.org/wiki/ANSI_escape_code

gives a mess of totally unsupported codes, of which ANSI in most clients will probably only support the same subset as ANSI.SYS did. Its a throwback to when some applications required that to be installed for color support to work in text clients for DOS and BBSes. A lot of stuff in telnet game clients are throwbacks to those days.
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #38 on Sat 07 Apr 2007 09:45 PM (UTC)
Message
Quote:

You would have to return the actual RGB color for it, break that into its components, calculate the darker/lighter color, glue the conponents back together, then send that result to through the colornote command.


See: http://www.gammon.com.au/scripts/doc.php?function=AdjustColour

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Shaun Biggs   USA  (644 posts)  Bio
Date Reply #39 on Sat 07 Apr 2007 09:57 PM (UTC)

Amended on Sat 07 Apr 2007 10:02 PM (UTC) by Shaun Biggs

Message
Quote:
Mushclient violates the rule of not changing the base 16 ANSI colors because we "can" already edit them. ".pal" files generally have the first 16 and the last 8? as default settings, this was a convention from the old days where the applications had to use the same color palette as the OS, so if you changed the first 16 or the grey scale either a) Your the OS would replace the images first 16 and last 8 with its standards, messing up the picture, or in more unusual cases, the applications colors would get changed to match the image (which in some cases could be very bad). So, Mushclient is violating the rules by allowing you to change those colors.

So are you suggesting a regression here? The reason that MUSHclient does not violate ANSI standards for this is because MC will display whatever colour the colour codes said to. You can alter how these codes look, similar to changing the palate 15 years ago. If you want to have them go back to a standard definition, there is a button in the ANSI colour section to allow you to go back to the normal colours.

Quote:
Umm. Thinking more in terms of the script. If you want "powderblue4", you can't tell it, "Use powderblue, but make it X% darker." You would have to return the actual RGB color for it, break that into its components, calculate the darker/lighter color, glue the conponents back together, then send that result to through the colornote command.

So when I use the hexadecimal codes or use AdjustColour for ColourNote, what exactly am I doing? Am I just wasting typing and not changing the colour displayed at all? I could have sworn that works in all of my plugins, including the one that uses this to have gradients in the colour displayed in a line of text. Must be my imagination.


And once again, I have to mention that MUSHclient is open source. If you feel this strongly about something that the main developer does not agree with, start coding.

It is much easier to fight for one's ideals than to live up to them.
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #40 on Sat 07 Apr 2007 10:13 PM (UTC)
Message
Quote:

Mushclient violates the rule of not changing the base 16 ANSI colors ...


Ah, I thought you were going to object I didn't have the right codes for the 16 base colours.




I know this is now a long thread, but two things I wanted to check are:


  1. Are we agreed that the 6x6x6 colour cube is the correct one? The one shown most recently, with a gap of 51 between each RGB value?

  2. Are we agreed that if the "inverse" attribute is currently set, then the set foreground/background sense is reversed (see earlier post).


- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #41 on Sat 07 Apr 2007 10:35 PM (UTC)
Message
Quote:

At least one Linux/Unix based list of web colors I found included about 4-5 times as many, since it allowed for things like "Light Rose 2", "Light Rose", "Dark Rose 2" and "Dark Rose", instead of just "Rose", or even Light and Dark versions only.


I should point out also that, AFAIK, zMUD has MXP support for the exact same list of colours as MUSHclient, and I don't want to encourage a "client war" where multiple clients all support different colour names, and thus MUD developers aren't sure which colours they can safely use when writing MXP. At least, at present, any colour in the MUSHclient colour picker should be supported.

- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Nick Gammon   Australia  (23,140 posts)  Bio   Forum Administrator
Date Reply #42 on Sat 07 Apr 2007 10:53 PM (UTC)

Amended on Sat 07 Apr 2007 11:00 PM (UTC) by Nick Gammon

Message
For the benefit of other client developers, here is the code I eventually used to generate all 256 entries:


// defines in case you are not using Windows:

// typedef unsigned long  COLORREF;
// typedef unsigned char  BYTE;
// typedef unsigned short WORD;
// #define RGB(r,g,b)  ((COLORREF)(((BYTE)(r)|((WORD)((BYTE)(g))<<8))|(((DWORD)(BYTE)(b))<<16)))


COLORREF xterm_256_colours [256];


void Generate256colours (void)
  {

  // standard 16 ANSI colours

  xterm_256_colours   [0] = RGB (0, 0, 0);         // (black)
  xterm_256_colours   [1] = RGB (128, 0, 0);       // (maroon)
  xterm_256_colours   [2] = RGB (0, 128, 0);       // (green)
  xterm_256_colours   [3] = RGB (128, 128, 0);     // (olive)
  xterm_256_colours   [4] = RGB (0, 0, 128);       // (navy)
  xterm_256_colours   [5] = RGB (128, 0, 128);     // (purple)
  xterm_256_colours   [6] = RGB (0, 128, 128);     // (teal)
  xterm_256_colours   [7] = RGB (192, 192, 192);   // (silver)

  xterm_256_colours   [8]  = RGB (128, 128, 128);  // (gray)
  xterm_256_colours   [9]  = RGB (255, 0, 0);      // (red)
  xterm_256_colours   [10] = RGB (0, 255, 0);      // (lime)
  xterm_256_colours   [11] = RGB (255, 255, 0);    // (yellow)
  xterm_256_colours   [12] = RGB (0, 0, 255);      // (blue)
  xterm_256_colours   [13] = RGB (255, 0, 255);    // (magenta)
  xterm_256_colours   [14] = RGB (0, 255, 255);    // (cyan)
  xterm_256_colours   [15] = RGB (255, 255, 255);  // (white)

// This gives even 6x6x6 colour cube
//  there are 6 colours in the cube, but only 5 gaps:
//   Thus the colours will be: 0x00 / 0x33 / 0x66 / 0x99 / 0xCC / 0xFF

  const BYTE colour_increment = 255 / 5;     // that is, 51 (0x33)

  int red, green, blue;

  for (red = 0; red < 6; red++)
      for (green = 0; green < 6; green++)
        for (blue = 0; blue < 6; blue++)
           xterm_256_colours [16 + (red * 36) + (blue * 6) + green] =
              RGB (red   * colour_increment,
                   blue  * colour_increment,
                   green * colour_increment);


  // finish off with 24 greyscale colours

  int grey;
  for (grey = 0; grey < 24; grey++)
    {
    BYTE value = 8 + (grey * 10);
    xterm_256_colours [232 + grey] = RGB (value, value, value);
    }

  } // end of Generate256colours


- Nick Gammon

www.gammon.com.au, www.mushclient.com
Top

Posted by Shadowfyr   USA  (1,791 posts)  Bio
Date Reply #43 on Sat 07 Apr 2007 11:13 PM (UTC)

Amended on Sun 08 Apr 2007 09:03 PM (UTC) by Nick Gammon

Message
Quote:
So are you suggesting a regression here?


No, I just mentioned that based on the way palettes where normally handled, it violated the standard, not that we should revert it. Sheesh...

Quote:
So when I use the hexadecimal codes or use AdjustColour for ColourNote, what exactly am I doing? Am I just wasting typing and not changing the colour displayed at all?



Moved discussion about custom colours to:


http://www.gammon.com.au/forum/?id=7775


- Nick Gammon
Top

Posted by Shaun Biggs   USA  (644 posts)  Bio
Date Reply #44 on Sat 07 Apr 2007 11:37 PM (UTC)
Message
Quote:
Its not like, if you allowed naming of user customized colors, that those would be supported in MXP either, it just makes it easier to use the name given to them, rather than trying to remember the hex codes.

So it's easier to remember a whole bunch of different names for colours? I personally would find that much more difficult to do. If you want to add in the colour names to plugins, just define them in the plugin.

<?xml version="1.0" encoding="US-ASCII"?>
<!DOCTYPE muclient[
  <!ENTITY player_name
   "Balaam" >
  <!ENTITY info_colour
   "11" >
]>


These are the first 7 lines of a plugin I made to keep track of player kills. I put in entities so that people could change their name and the colour which they preferred for display. Every time the player's name is in a trigger, &player_name is substituted so that the triggers don't have to be changed one by one for everyone using the script.

It is much easier to fight for one's ideals than to live up to them.
Top

The dates and times for posts above are shown in Universal Co-ordinated Time (UTC).

To show them in your local time you can join the forum, and then set the 'time correction' field in your profile to the number of hours difference between your location and UTC time.


159,137 views.

This is page 3, subject is 4 pages long:  [Previous page]  1  2  3 4  [Next page]

It is now over 60 days since the last post. This thread is closed.     Refresh page

Go to topic:           Search the forum


[Go to top] top

Information and images on this site are licensed under the Creative Commons Attribution 3.0 Australia License unless stated otherwise.
